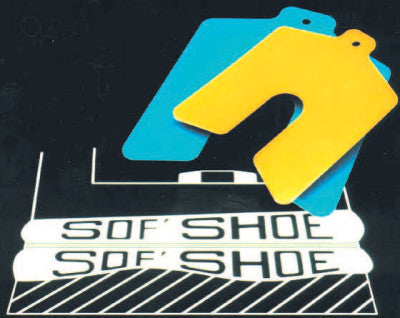

Sof Shoe Shims, 0.05, Elastomer, 0.045" x 5" x 5"

Blue Sof Shoe shims are .020 in. thick, compress to .0175 in. and absorb up to .010 in. of angularity
Can be used on motors, pumps, generators, turbines and other plant machinery in minutes
Made from a proprietary elastomer which has a unique cold flow and set characteristic to fill irregular gaps
Sof Shoe Shims cures angular soft foot and extends bearing and motor life
Yellow Sof Shoe shims are .045 in. thick, compress to .040 in. and absorb up to .020 of angularity

Quantity 10EA/PKG

Specifications

Color=Yellow
Length [Nom]=5 in
Material=Elastomer

Quantity=10 per package
Thickness Tolerance (+) [Max]=0.05
Thickness Tolerance (-) [Min]=0.05
Thickness [Nom]=0.045 in
Type=Shim-Alignment
Width [Nom]=5 in
Wt.=0.43 lb
