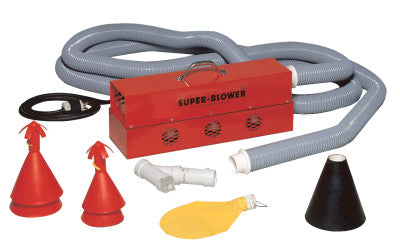

SUPER BLOWER FISHING SYSTEM

Extra-long hose allows power unit to be located outside the manhole or vault
All work is done from one end of the conduit, permitting one-person operation
Seal-Off System
Eliminates extra steps by allowing simple “dial” selection of feed-thru opening size for up to 1/2" pull rope
May use pull rope and True Tape conduit measuring tape simultaneously

Quantity 1EA

Specifications

Amps [Nom]=23.00 A
Flow [Max]=275.00 CFM
Height [Nom]=8 1/4 in
Includes=Power Unit; (3) Motors 1-1/2 HP Each; 25 ft x 2-1/2 in. Hose; Large Dial-A-Line Seal-Off Body; Seal-Off for 2 1/2 - 6 in. Conduit; Line Carrier for 3, 3-1/2, 4 in. Conduit; 5 & 6 in. Plastic Line Carriers
Length [Nom]=24 in
Pressure [Max]=4.00 psi
Voltage [Nom]=115.00 VAC
Width [Nom]=7 1/2 in
Wt.=56 lb
