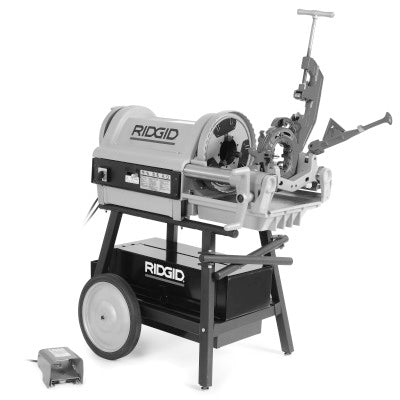

Model 1224 Power Threading Machine, 1/2 in to 4 in (NPT) Pipe Capacity

1/4"-2" Universal Die Head
2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads
Constant and proper lubrication of dies and workpiece with through-head oiling
Motor Control: Reverse/off/forward, heavy-duty rotary-type and integral foot switch
Gear Box: Two-speed gear box 3:1 ratio
A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
An induction motor insures sound levels well within the limits set by the regulating authorities
Hammer-type chuck with replaceable rocker-action jaw inserts
Self-priming, GEROTO-type, automatic-reversing, constant-flow pump

Quantity 1EA

Specifications

Frequency [Max]=60 Hz
Frequency [Nom]=60.0 Hz
Includes=1-Gallon Nu-Clear Oil; 1-No. 714 (914) 2 1/2 - 4 in Receding Self-Opening Die Head; 1-No. 711 (911) 1/4 - 2 in Universal Self-Opening Die Head; 1-Set 1/2 - 3/4 in Universal Alloy Dies; 1-Set 1 - 2 in Universal Alloy Dies; 1-Set 2 1/2 - 4 in 1224 High Speed Dies; 3-Hex Keys; 1-spare F-229 Cutter Wheel; 1-3/4 in Combination Wrench; 1-Tool Box; 1-No. 744 Reamer; 1-No. 764 Cutter
Phase=Single
Pipe Cap. [Max]=4 in (NPT)
Pipe Cap. [Min]=1/2 in (NPT)
Power Cap. [Max]=1 1/2 hp
Speed [Nom]=12 rpm; 36 rpm
Voltage [Nom]=240 V
Wt.=509 lb
