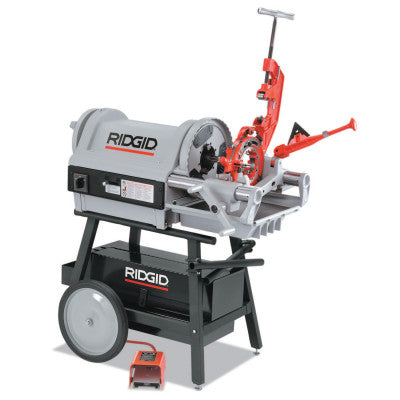

Model 1224 Power Threading Machine, 2 1/2 in to 4 in Pipe Capacity

1/4"-2" Universal Die Head
2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads
Constant and proper lubrication of dies and workpiece with through-head oiling
Motor Control: Reverse/off/forward, heavy-duty rotary-type and integral foot switch
Gear Box: Two-speed gear box 3:1 ratio
A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
An induction motor insures sound levels well within the limits set by the regulating authorities
Hammer-type chuck with replaceable rocker-action jaw inserts
Self-priming, GEROTO-type, automatic-reversing, constant-flow pump

Quantity 1EA

Specifications

Die Head Type=711 Universal
Frequency [Max]=60 Hz
Frequency [Nom]=60.0 Hz
Height [Nom]=0 in
Length [Nom]=0 in
Phase=Single
Power Cap. [Max]=1 1/2 hp
Rod Diam. - TPI=1/4 in - 2 in NPT
Speed [Nom]=36 rpm; 12 rpm
Voltage [Nom]=240 V
Width [Nom]=0 in
Wt.=0 lb
