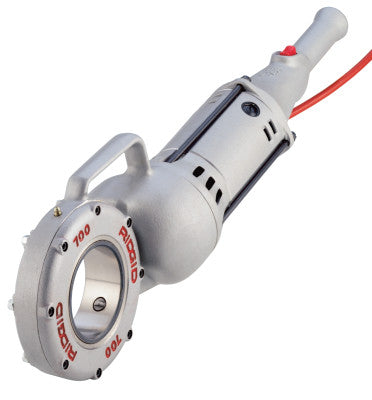

Model 700 Power Drive/Hand Held Threader, 1/8 in to 2 in Pipe Capacity

Features reversible 115V universal motor
Designed for RIDGID No. 12R die heads
Switch: Double-throw reversible
Gear Head: All-spur gear reduction, spring loaded adapter pawl, hardened steel spindle gear
Body: Cast aluminum

Quantity 1EA

Specifications

Amps [Nom]=13 A
Frequency [Max]=60 Hz
Frequency [Min]=25 Hz
Includes=700 PD; Torque Arm
Length [Nom]=28 1/4 in
Phase=Single
Pipe Cap. [Max]=2 in
Pipe Cap. [Min]=1/8 in
Power Cap. [Max]=1/2 hp
Rod Diam. - TPI=1/4 - 1 in
Speed [Nom]=32 rpm
Threading Cap. [Max]=6 in
Voltage [Nom]=115 V
Wt.=25 lb
