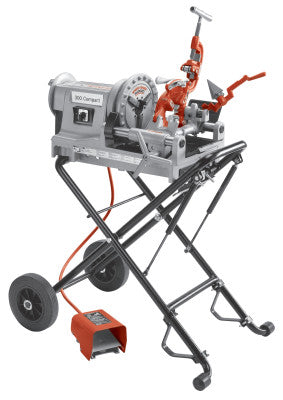

Model 300 Compact Power Threading Machine, 1/8 in to 2 in (NPT) Pipe Capacity

300 Compact shown with optional Model 250 Folding Wheel Stand
Heavy-Duty proven performance
Lightweight, portable design
Fast transporting and set-up
Self-contained oil system with adjustable flow control
Versatility for threading and grooving
Motor Control: Heavy duty rotary FOR/OFF/REV with integral foot switch
Chuck: Hammer-type with replaceable, rocker-action jaw inserts
Oiling System: Through-the-head, with integral oil reservoir, self-priming, constant-flow, gerotor pump
Cutter: Model 360, roll-type cut off, self-centering, full-floating

Quantity 1EA

Specifications

Amps [Nom]=15 A
Frequency [Max]=60 Hz
Frequency [Min]=25 Hz
Includes=1-No. 811A Quick-Opening Die Head; 1-No. 344 Reamer; 1-No. 360 Cutter w/E-1032 Cutter Wheel; 1-Set 1/2 - 3/4 in Universal Alloy Dies; 1-Set 1 - 2 in Universal Alloy Dies; 1-Gallon Nu-Clear Oil; Model 250 Folding Wheel Stand
Phase=Single
Pipe Cap. [Max]=2 in (NPT)
Pipe Cap. [Min]=1/8 in (NPT)
Power Cap. [Max]=1/2 hp
Speed [Nom]=38 rpm
Voltage [Nom]=115 V
Wt.=160 lb
