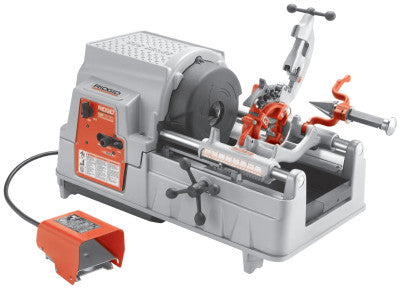

Model 535A Automatic Threading Machine, 1/8 to 2 in Pipe Capacity, 811A Die Head

3-speed transmission
Automatic chuck with four reversible forged jaws
Can be used with geared threader Model 141
FOR/OFF/REV and integral safety foot switches
Generous Top Cover Area for keeping tools and fittings handy
High clearance carriage
Large 1.75 Gal Oil Reservoir
Large chip tray
Length gauge for quick, accurate cut-off
Oil Pump: Self-priming gerotor oil pump

Quantity 1EA

Specifications

Amps [Nom]=20 A
Die Head Type=811A
Frequency [Max]=60 Hz
Frequency [Nom]=60.0 Hz
Includes=1-Set 1 - 2 in Universal High Speed Dies; 1-341 Reamer; 1-No. 820 Cutter; 1-Spare E-1032 Cutter Wheel; 1-Set 1/2 - 3/4 in Universal High Speed Dies; 1-Gallon Stainless Steel Premium Oil; 2-Hex Wrenches; 1-Spare E1032 Cutter Wheel;1-No. 811A Universal Quick-Opening Die Head
Phase=Single
Pipe Cap. [Max]=2 in
Pipe Cap. [Min]=1/8 in
Power Cap. [Max]=2 hp
Rod Diam. - TPI=1/4 in - 2 in
Speed [Nom]=16 rpm; 46 rpm; 58 rpm
Voltage [Nom]=115 V
Wt.=350 lb
