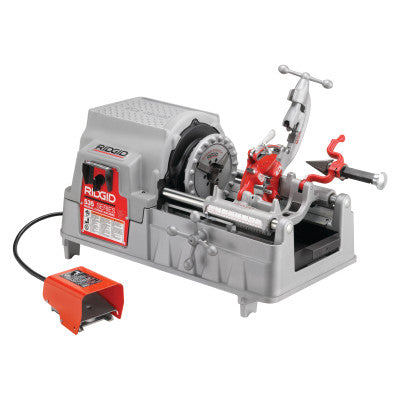

Model 535 Power Threading Machine, 1/8 in to 2 in (NPT) Pipe Capacity
Model 535 Power Threading Machine, 1/8 in to 2 in (NPT) Pipe Capacity
SKU:632-96497
Large 1.75 gallon oil tray
100% larger chip tray
Generous top cover for keeping tools and fittings handy
High clearance carriage
Speed chuck with rocker-action jaws centers and grips workpiece instantly
Can be used with geared threaders Models 141 and 161
Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads
Length gauge for quick, accurate cut-off
Switches: FOR/OFF/REV and integral safety foot switch
Rear Centering Device: Cam-action, turns with chuck
Quantity 1EA
Specifications
Amps [Nom]=15 A
Frequency [Max]=60 Hz
Frequency [Min]=25 Hz
Frequency [Nom]=25.0 Hz; 60.0 Hz
Includes=Machine Only (w/Cutter & Reamer)
Phase=Single
Pipe Cap. [Max]=2 in (NPT)
Pipe Cap. [Min]=1/8 in (NPT)
Power Cap. [Max]=1/2 hp
Speed [Nom]=36 rpm
Voltage [Nom]=115 V
Wt.=245 lb
