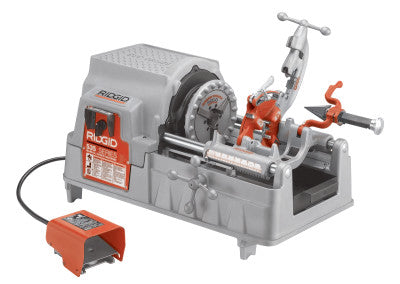

Model 535 Power Threading Machine, 1/8 in to 2 in (NPT) Pipe Capacity

Large 1.75 gallon oil tray
100% larger chip tray
Generous top cover for keeping tools and fittings handy
High clearance carriage
Speed chuck with rocker-action jaws centers and grips workpiece instantly
Can be used with geared threaders Models 141 and 161
Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads
Length gauge for quick, accurate cut-off
Switches: FOR/OFF/REV and integral safety foot switch
Rear Centering Device: Cam-action, turns with chuck

Quantity 1EA

Specifications

Amps [Nom]=15 A
Frequency [Max]=60 Hz
Frequency [Min]=25 Hz
Frequency [Nom]=25.0 Hz; 60.0 Hz
Includes=1-No. 811A Quick Change Die Head; 1-341 Reamer; 1-No. 820 Cutter; 1-Set 1/2 - 3/4 in Universal Alloy Dies; 1-Set 1 - 2 in Universal Alloy Dies; 1-Gallon Premium Oil; 4-Hex Wrenches; 1-Spare E-1032 Cutter Wheel
Phase=Single
Pipe Cap. [Max]=2 in (NPT)
Pipe Cap. [Min]=1/8 in (NPT)
Power Cap. [Max]=1/2 hp
Speed [Nom]=36 rpm
Voltage [Nom]=230 V
Wt.=260 lb
