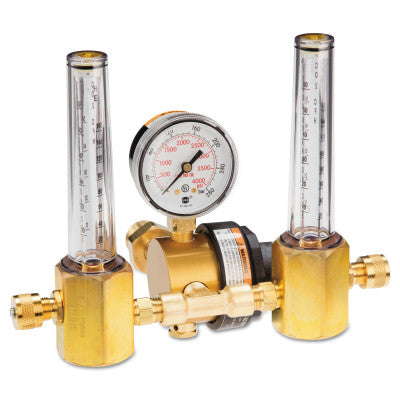

MILLER-SMITH Flowmeter Regulators, Argon/Helium/Carbon Dioxide, 3000 PSIG inlet

Built-in rupture disc reduces possibility of flow tube damage due to high pressure inlet surge
Exceptional value and compact design, provides precise shield gas regulation for MIG and TIG welding applications and more
Precision flow adjustment valve locks flow at desired setting
Shatter-resistant polycarbonate flow tube features triple scale for Argon, Helium and Argon/CO2 and has a packless O-ring flow tube seal which reduces maintenance

Quantity 1EA

Specifications

Applications=Cutting; Welding
Connection Type=CGA 580 (Inlet)
Flow Cap. [Max]=160 SCFH
Flow Cap. [Min]=0 SCFH
Flow Range=0 - 160 SCFH Helium; 0 - 50 SCFH CO2; 0 - 60 SCFH Argon
Gas Type=Argon; Helium; Carbon Dioxide
Gauge Size=2 in
Inlet Connection=CGA 580
Inlet Pressure [Max]=3,000 PSIG
Inlet Type=CGA 580
Outlet Connection=5/8 in - 18 RH (F)
Outlet Pressure [Max]=50 psig
Outlet Size=5/8 in
Outlet Type=Right Hand Thread
Thread - TPI or Pitch=5/8 in - 18 RH
Type=Flowmeter Regulator
