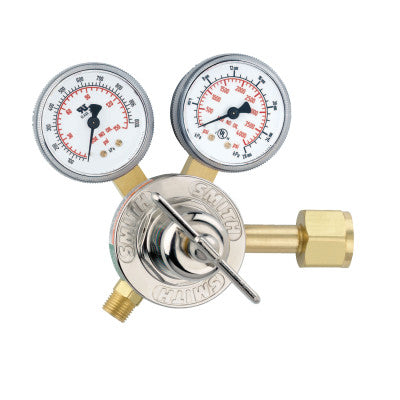

Medium-Duty Flowmeter Regulators, Oxygen, CGA 540; 3,000 psig inlet

Rugged medium-duty industrial-grade regulators are extremely durable and contain Smith’s exclusive Sure Seat filtered seat technology for extended seat and regulator life
Flow Gauge and Flowmeter Regulators
Use for shielding gas with argon or CO2 in MIG and TIG welding
Flow gauge regulators are for accurate measurement of gas flow
Flowmeter regulators incorporate flowmeter and regulator into one compact unit
Dual flowmeter regulator is ideal for back purge TIG welding
Provide efficient and accurate regulation
Filtered seat prevents contamination from entering the seating area reducing repair costs and down-time

Quantity 1EA

Specifications

Body Diam=2 in
Gas Type=Oxygen
Gauge Size=2 in
Inlet Connection=CGA 540; CGA540
Inlet Pressure [Max]=3,000 psig
Outlet Connection=9/16-18 RH B
Outlet Pressure [Max]=1000 psi
Overall Length [Nom]=4 3/4 in
Packing Type=Clamshell
Series=Series 30
Type=Medium Duty Regulator
Wt.=2.84 lb
