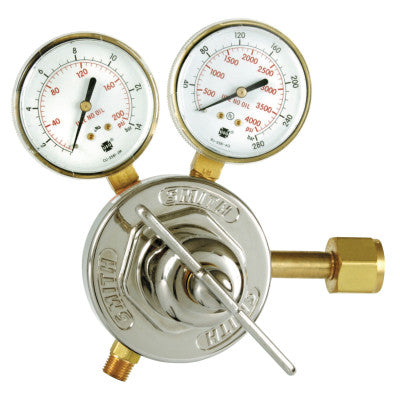

Series 40 Heavy-Duty Flowmeter Regulators, Acetylene, CGA 510, 400 psig inlet

Heavy-duty construction and simplified design provides high gas flow and longer trouble-free operation
Stainless-steel diaphragm allows use with liquid gases

Quantity 1EA

Specifications

Body Diam=3 1/4 in
Gas Type=Acetylene
Gauge Size=2 1/2 in
Inlet Connection=CGA 510; CGA510
Inlet Pressure [Max]=400 psig
Outlet Connection=9/16-18 LH B
Outlet Pressure [Max]=150 psi
Outlet Pressure [Min]=15 psig
Overall Length [Nom]=6 in
Packing Type=Clamshell
Series=Series 40
Type=Heavy Duty Regulator
Wt.=7.05 lb
