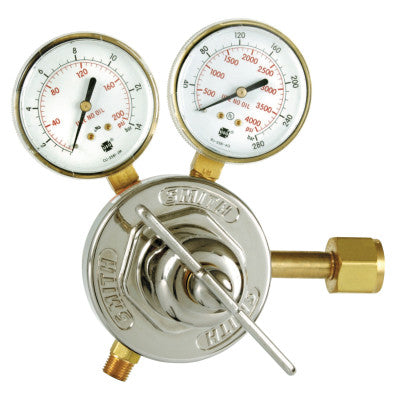

Series 40 Heavy-Duty Flowmeter Regulators, Oxygen, 175 PSIG, CGA540, 3,000 psig

Heavy-duty construction and simplified design provides high gas flow and longer trouble-free operation
Stainless-steel diaphragm allows use with liquid gases

Quantity 1EA

Specifications

Body Diam=3 1/4 in
Flow Range=0 - 175 PSIG
Gas Type=Oxygen
Gauge Size=2 1/2 in
Inlet Connection=CGA 540; CGA540
Inlet Pressure [Max]=3,000 psig
Outlet Connection=9/16-18 RH B
Outlet Pressure [Max]=1750 psi
Outlet Pressure [Min]=175 psig
Overall Length [Nom]=6 in
Packing Type=Clamshell
Series=Series 40
Type=Heavy Duty Regulator
Wt.=7.05 lb
