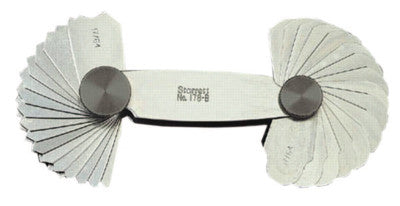

178A 30-LEAF RADIUS GAGE

Each gage has leaves for measuring both concave and convex radii, with each leaf stamped with the radius size
Any one of the leaves can be securely locked in position by a locking device
For laying out and checking radii of tools, dies, and patterns as used by die makers, machinists, screw machine operators, pattern makers, and mechanics

Quantity 1EA

Specifications

Measuring System=Inch
No. of Blades=30

Quantity=1 per box
Range [Max]=1/4 in
Range [Min]=1/32 in
Type=Radius
Wt.=0.12 lb
