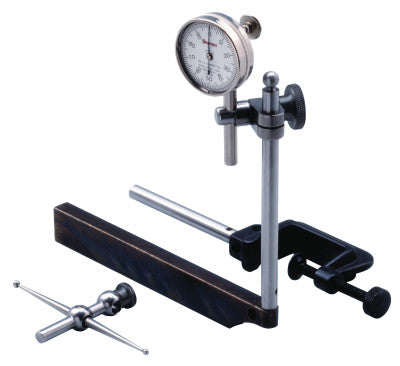

196 Series Universal Back-Plunger Dial Test Indicators, 0-100, Adptr/Attach/Case

Accurate and reliable
Few moving parts
3 different styles of contact points
Simple operation

Quantity 1EA

Specifications

Accuracy=±0.001 in
Dial Reading=0-100
Display Color=White
Display Diam=1 7/16 in
Display Type=Continuous Dial
Graduation(s)=.001 in
Includes=Indicator; Adapter; (4) Attachments; Case
Measuring System=Inch
Mounting=Holding Bar
Range [Max]=0.2 in
Stem Diam=1/4 in
Tip Diam [Nom]=1/4 in
Tip Length=2 31/64 in
Tip Material=Steel
Tip Type=Ball Point; Spherical Point
Type=Back Plunger Dial Indicator
Wt.=2.2 lb
