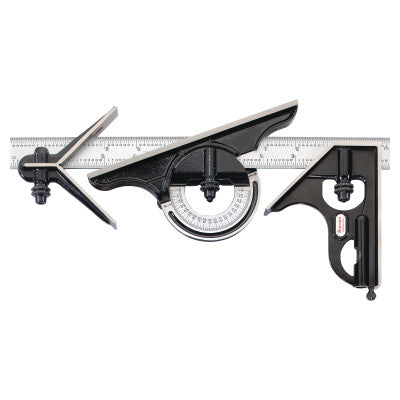

434H Series Combination Squares, 4 1/2" x 12", Quick Read 64ths, Steel/Chrome

Reversible lock bolt allows blade to be turned over or end-for-end, without removing the lock bolt or nut
Multi-purpose uses include
45 miter, depth gage, height gage, marking or scribing gage, a level, a plumb, and a precision rule
Spirit level in square and protractor heads
Forged and hardened steel square heads and center heads, cast iron protractor head with smooth black finish
Center head accurately finds center of round work
Steel scriber
Protractor head has direct reading, double 180 scale
Hardened, machine divided graduations, blade

Quantity 1SET

Specifications

Beam Length=4 1/2 in
Beam Material=Forged Hardened Steel
Beam Width [Nom]=3/4 in
Blade Finish=Satin Chrome
Blade Length [Nom]=12 in
Blade Material=Steel
Blade Thickness [Nom]=3/32 in
Blade Width [Nom]=1 in
Finish=Black Enamel
Graduation(s)=No. 4R - 8ths, 16ths; Quick Reading 32nds, 64ths
Increment @ Scale=1/16 in @ 1 in; 1/32 in @ 1 in; 1/64 in @ 1 in; 1/8 in @ 1 in
Material=Forged Steel; Satin Chrome
Measuring System=Inch
No. of Scales=4

Quantity=Each
Type=Combination Square
Wt.=2.33 lb
