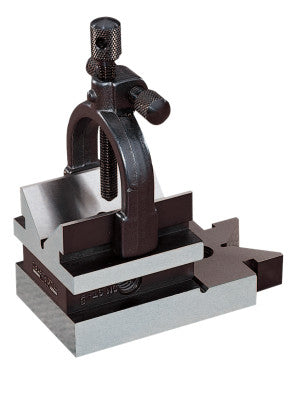

No. 567 V-Block and Clamp, 1 5/16 in Capacity

Can be used on its base, on the end, or on either side
The clamp is smaller than the outside width of the block, but has an adjustable side screw to support the block and prevent tilting
The V at the stepped end is at right angles to the base and is handy for holding shouldered studs, pins, etc.
A clearance hole for drilling or removing dowel pins is provided in the block
The block has four 3/8-16 tapped holes
The block is hardened and precision ground
The clamp is a strong forging

Quantity 1SET

Specifications

Capacity [Nom]=1 5/16 in
Wt.=2.1 lb
