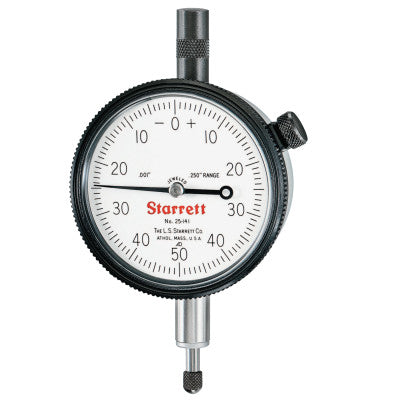

25 Series AGD Group 2 Dial Indicators, 0-50-0 Dial, 0.25 in Range

Shockless hardened steel gear train and jewel bearings
Furnished with a lug-on-center back
Stainless steel bottom stems
Balanced and tapered hands
Rugged and simple unit construction with a “universally fitting” design
Sharp bezel serrations for positive grip
Unbreakable crystal
Massive bridge for rigid bearing support
Hardened stainless steel gears and pinions

Quantity 1EA

Specifications

Dial Reading=0-50-0
Display Color=White
Display Diam=3 1/4 in
Display Type=Balanced Dial
Finish=Satin
Graduation(s)=.001 in
Height [Nom]=2.6 in
Length [Nom]=6.2 in
Measuring System=Inch
Mounting=Lug-on Center Back; Stem
Range [Max]=0.25 in
Stem Diam=3/8 in
Thread Point @ TPI or Pitch=#4 - 49
Tip Diam [Nom]=0.375 in
Tip Material=Hardened Steel
Tip Type=Radius Contact
Type=Dial Indicator
Width [Nom]=4.1 in
Wt.=0.6 lb
