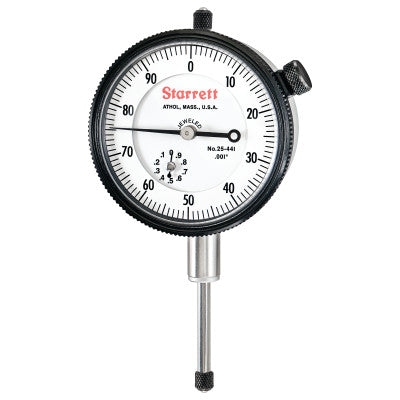

25 Series AGD Group 2 Dial Indicators, 0-100 Dial, 1 in Range, w/Stem Cap

Shockless hardened steel gear train and jewel bearings
Furnished with a lug-on-center back
Stainless steel bottom stems
Balanced and tapered hands
Rugged and simple unit construction with a “universally fitting” design
Sharp bezel serrations for positive grip
Unbreakable crystal
Massive bridge for rigid bearing support
Hardened stainless steel gears and pinions

Quantity 1EA

Specifications

Dial Reading=0-100
Display Color=White
Display Diam=2 1/4 in
Display Type=Continuous Dial
Finish=Satin
Graduation(s)=.001 in
Includes=Stem Cap
Measuring System=Inch
Mounting=Lug-on Center Back; Stem
Range [Max]=1 in
Range [Min]=0.7 in
Range/Revolution=0.1 in
Stem Diam=3/8 in
Thread Point @ TPI or Pitch=#4 - 48
Tip Material=Hardened Steel
Tip Type=Radius Contact
Type=Dial Indicator
Wt.=0.53 lb
