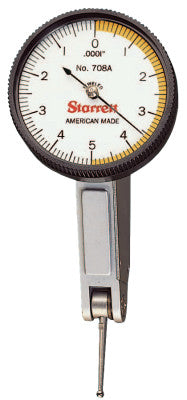

708 Series Dial Test Indicators, 0-5-0 Dial, 0.02 in Range

For precise measurements in all machining, layout, and inspection work
Half-shaded yellow for clarity
Hard chrome-plated contact point
Smooth, jeweled action

Quantity 1EA

Specifications

Accuracy=±0.0001 in
Dial Reading=0-5-0
Display Color=White/Yellow
Display Diam=1 3/8 in
Display Type=Balanced Dial
Graduation(s)=.0001 in
Mounting=Dovetail
Range [Max]=0.02 in
Range [Min]=0.01 in
Stem Diam=0.078 in
Tip Diam [Nom]=0.078 in
Tip Length=13/16 in
Tip Type=Ball Point
Type=Parallel Test Indicator
Wt.=1.14 lb
