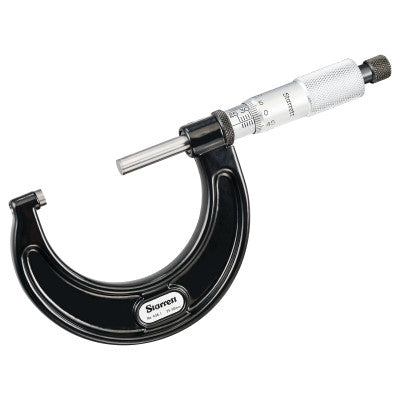

436.1 Series Outside Micrometers, 25 mm-50 mm, 0.001 mm

Ring-type knurled lock nut for quick and sure locking
Gracefully designed tapered frame for use in narrow slots and tight places
Rigid one-piece steel frame ribbed for extra strength
Micro-lapped measuring faces

Quantity 1EA

Specifications

Accuracy=±0.002 mm
Anvil Tip Type=Flat
Base Length [Nom]=6 23/64 in
Body Material=Carbide
Case Material=Carbide
Display Type=Digital
Finish=Satin Chrome
Graduation(s)=0.001 mm
Height [Nom]=3 in
Length [Nom]=6 23/64 in
Material=Carbide
Measuring System=Metric
Model=V436.1MXRL-50
Operating Type=Mechanical
Output=Digital

Quantity=1 each
Range [Max]=50 mm
Range [Min]=25 mm
Spindle Diam=0.25 in
Spindle Tip Length=1 17/64 in
Spindle Tip Type=Flat
Stem Diam=39/64 in
Structure=U-Shaped
Thimble Finish=Satin Chrome
Thimble Mechanism=Ratchet
Tip Material=Carbide
Tip Type=Flat
Type=Outside Micrometer
Usage=Measurements
Width [Nom]=9/32 in
