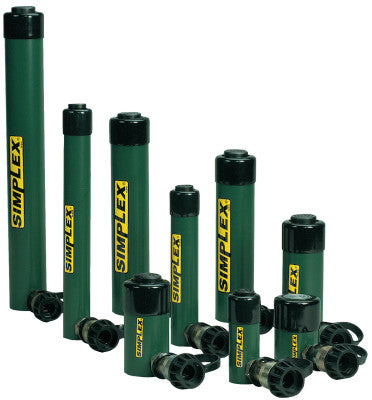

Spring Return Cylinders, 100 tons, 6 5/8 in Stroke Length

Quantity 1EA

Specifications

Bore Diam [Nom]=5 1/8 in
Capacity Wt. [Max]=100 tons
Collapsed Height=13 1/4 in
Cylinder Effective Area=20.63 sq. in.
Extended Height [Nom]=20 11/16 in
Oil Cap.=137 cu in
Operating Pressure [Max]=9,695 psi
Stroke Length [Nom]=6 5/8 in
Wt.=90 lb
