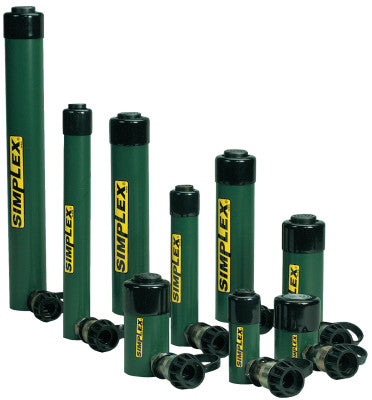

Spring Return Cylinders, 15 tons, 6 in Stroke Length

Quantity 1EA

Specifications

Bore Diam [Nom]=2 in
Capacity Wt. [Max]=15 tons
Collapsed Height=10 11/16 in
Cylinder Effective Area=3.14 sq. in.
Extended Height [Nom]=16 11/16 in
Oil Cap.=19 cu in
Operating Pressure [Max]=9,554 psi
Stroke Length [Nom]=6 in
Wt.=14.5 lb
