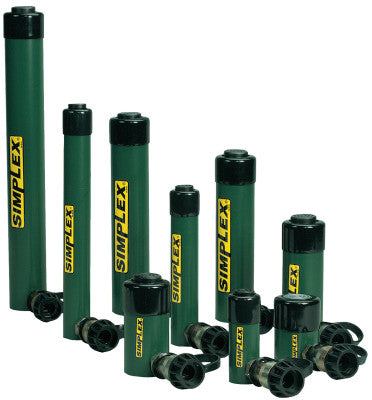

Spring Return Cylinders, 5 tons, 5 in Stroke Length

Quantity 1EA

Specifications

Bore Diam [Nom]=1 1/8 in
Capacity Wt. [Max]=5 tons
Collapsed Height=8 1/2 in
Cylinder Effective Area=0.99 sq. in.
Extended Height [Nom]=13 1/2 in
Oil Cap.=5 cu in
Operating Pressure [Max]=10,000 psi
Stroke Length [Nom]=5 in
Wt.=4 lb
