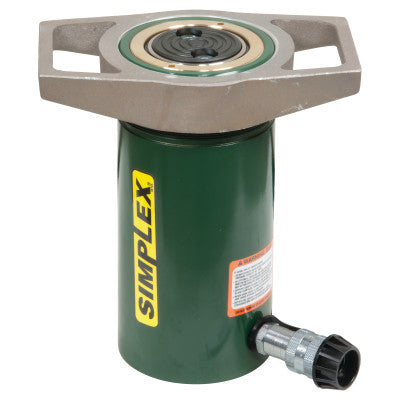

Spring Return Cylinders, 55 tons, 6 1/4 in Stroke Length

Quantity 1EA

Specifications

Bore Diam [Nom]=3 3/4 in
Capacity Wt. [Max]=55 tons
Collapsed Height=11 1/8 in
Cylinder Effective Area=11.05 sq. in.
Extended Height [Nom]=17 3/8 in
Oil Cap.=69 cu in
Operating Pressure [Max]=9,955 psi
Stroke Length [Nom]=6 1/4 in
Wt.=50 lb
