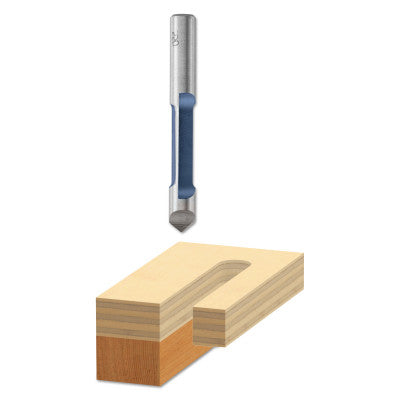

Carbide-Tipped Pilot Panel Router Bits w/Drills-Through Points, 1/4 in
Carbide-Tipped Pilot Panel Router Bits w/Drills-Through Points, 1/4 in
SKU:114-85244
Premium quality micrograin carbide tips are ground on specialized CNC equipment
Extra-fine finish with maximum sharpness and edge retention
Pilot panel bit has a drill-through point that plunges through the material
Used for window and door cutouts in abrasive insulation materials, plywood and paneling
The fully hardened and tempered steel shank provides enhanced durability
Single flute allows for faster feed rates
Quantity 1BIT
Specifications
Applicable Materials=Plastic; Wood
Applications=Construction; Insulation Materials; Paneling; Plywood
Bit/Blade Mounting Type=Panel Straight
Cutting Diam [Nom]=1/4 in
Cutting Direction=Right
Cutting Edge Material=Carbide-Tipped
Cutting Length [Nom]=3/4 in
End Shape=Cutting & Pilot End
Flute Length=3/4 in
No. of Flutes=1
Overall Length [Nom]=2 9/16 in
Quantity=1 per pack
Shank Diam [Nom]=1/4 in
Shank Length [Nom]=1 in
Shank Material=Steel
Shank Type=Pozi-Stop
Structure=Mounted Router
Tool Shape=Pilot Panel
Type=Carbide Tipped
Usage=Door; Window
Wt.=0.03 lb
