1-5/8" CT OGEE STILE ASSEMBLY
1-5/8" CT OGEE STILE ASSEMBLY
SKU:114-85626M
Premium-quality micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention

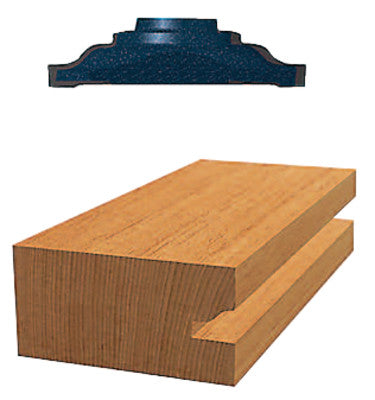

The rail bit is used for doing ogee profile rail cuts for cabinet doors
Fully hardened and tempered steel shank provides enhanced durability
Adjustable set produces tight fitting joints for cabinet door frames
Reversible assembly that can also be used to make stile cut, by order on the arbor
Super sharp cutting edges and close tolerances ensure tight gap-free joints
Micrograin carbide tips provide superior wear resistance and long life
For use with a router table only
Used for doing all varieties of frame-and-panel assemblies for furniture and architectural applications
Quantity 1BIT
Specifications
Applicable Materials=Wood
Corner Radius [Nom]=5/32 in
Cutting Diam [Nom]=1 5/8 in
Cutting Direction=Right
Cutting Edge Material=Carbide-Tipped
Cutting Length [Nom]=21/32 in
End Shape=Bearing Pilot End
Overall Length [Nom]=3 in
Quantity=1 per pack
Shank Diam [Nom]=1/2 in
Shank Length [Nom]=1 5/8 in
Tool Shape=Ogee Stile
Wt.=0.60 lb
