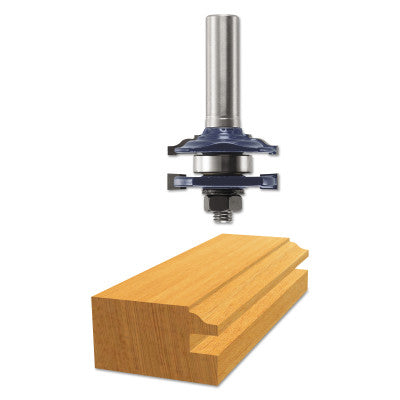

Ogee Stile and Rail Cutter Assembly Router Bits, 1 5/8 in, Bearing Pilot End

  • Sale
  • Regular price $85.23
  • 0 available


Vendor - Bosch Tool Corporation

SKU - 114-85627M
Description

Premium-quality micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention
The rail bit is used for doing ogee profile rail cuts for cabinet doors
Fully hardened and tempered steel shank provides enhanced durability
Adjustable set produces tight fitting joints for cabinet door frames
Reversible assembly that can also be used to make stile cut, by order on the arbor
Super sharp cutting edges and close tolerances ensure tight gap-free joints
Micrograin carbide tips provide superior wear resistance and long life
For use with a router table only
Used for doing all varieties of frame-and-panel assemblies for furniture and architectural applications

Quantity 1BIT

Specifications

Applicable Materials=Wood
Applications=Construction; Furniture and Architectural
Bit/Blade Mounting Type=Ogee Rail
Corner Radius [Nom]=5/32 in
Cutting Depth [Nom]=5/16 in
Cutting Diam [Nom]=1 5/8 in
Cutting Direction=Right
Cutting Edge Material=Carbide-Tipped
Cutting Length [Max]=13/16 in
Cutting Length [Nom]=3/4 in
End Shape=Bearing Pilot End
Flute Length=0.8125 in
No. of Flutes=2
Overall Length [Nom]=3 in

Quantity=1 per pack
Shank Diam [Nom]=1/2 in
Shank Length [Nom]=1 5/8 in
Shank Material=Steel
Shank Type=Pozi-Stop
Structure=Mounted Router
Tool Shape=Ogee Rail
Type=Carbide Tipped
Usage=Architectural; Furniture
Wt.=0.6 lb
