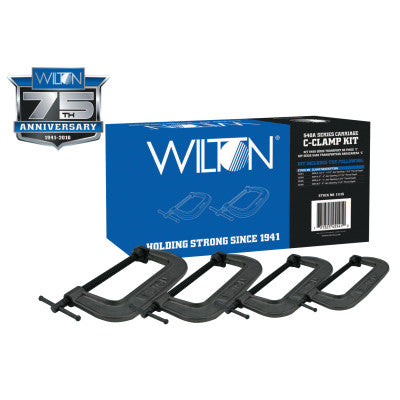

540A Series Carriage C-Clamp Kit, 1 3/4 in - 3 1/4 in Throat Depth

Kit features heaviest duty carriage clamps available
Includes four clamps of the most popular sizes—2 1/2 in, 4 in, 6 in and 8 in opening capacities
Frames are constructed from high strength ductile iron castings
Contains sliding pin (vise type) handle, single acme thread rolled spindle and oscillating ball and socket tip
Suitable for light industrial, woodworking and repair applications

Quantity 1EA

Specifications

Body Material=Drop Forged Steel
Color=Black
Finish=Black Oxide
Handle Material=Steel
Handle Type=Sliding Pin
Opening Size [Max]=2 1/2 in; 4 in 6 in; 8 in
Pressure [Nom]=1,110 psi; 2,150 psi; 2,450 psi; 2,750 psi
Spindle Diam=1/2 in; 5/8 in; 5/8 in; 3/4 in
Throat Depth [Nom]=1 3/4 in; 2 1/16 in; 2 3/4 in, 3 1/4 in
Type=Carriage C-Clamp
