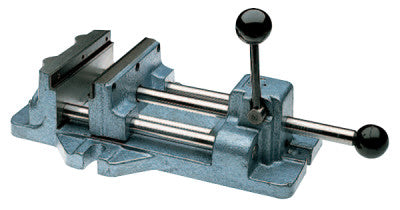

1204 4" DRILL PRESS VISECAM ACTION

Simple push or pull on the center bar knob sets the jaw in position
Easy press locking lever cams the jaw ahead 3/32", existing a holding pressure that is adjustable from 400 to 1100 lbs
Recessed parallel steel jaw inserts level work, and can be removed to accommodate your jig and fixture components
The base is designed for clear through drilling applications
For added durability, bars and locking mechanisms are hardened and ground
The unique top locking lever can be raised or lowered to tighten or loosen against the workpiece

Quantity 1EA

Specifications

Jaw Material=Steel
Jaw Opening [Nom]=4 11/16 in
Jaw Width=4 in
Locking Type=Cam Locking Mechanism
Material=Cast Iron
Nut Type=Rapid Acting
Throat Depth [Nom]=1 5/16 in
Wt.=18 lb
