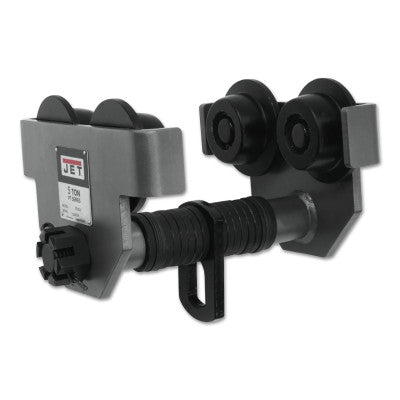

PT Series Plain Trolley, 5 Ton, 4 5/8" - 8" Beam Width, 5" - 19" Beam Height

Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
Built-in bumper guards on the side plates increase safety and extend trolley life
Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers

Quantity 1EA

Specifications

Beam Height [Max]=19 in
Beam Height [Min]=5 in
Beam Width [Max]=8 in
Beam Width [Min]=4 5/8 in
Control Type=Manual
Corner Radius [Min]=55 in
Load Cap. [Max]=5 ton
Load Cap. [Nom]=5 ton
Type=Manual Dragged Trolley
Wt.=125 lb
