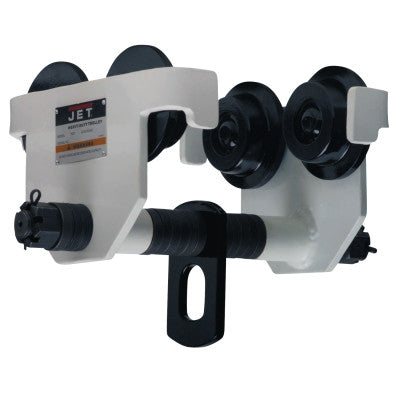

HDT Series Manual Trolley, 2 Ton, 3 1/4" - 8" Beam Width

Welded all-steel frame and powder coat finish provide maximum durability and protection
Built-in bumper guards on the side plates increase safety and extend trolley life
Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers

Quantity 1EA

Specifications

Beam Height [Max]=24 1/2 in
Beam Height [Min]=6 in
Beam Width [Max]=8 in
Beam Width [Min]=3 1/4 in
Corner Radius [Min]=43 in
Load Cap. [Max]=2 ton
Load Cap. [Nom]=2 ton
Wt.=31 lb
