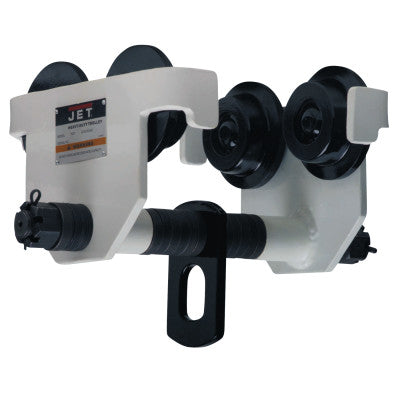

HDT Series Manual Trolley, 5 Ton, 4 5/8" - 8" Beam Width

Welded all-steel frame and powder coat finish provide maximum durability and protection
Built-in bumper guards on the side plates increase safety and extend trolley life
Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers

Quantity 1EA

Specifications

Beam Height [Max]=24 1/2 in
Beam Height [Min]=10 in
Beam Width [Max]=8 in
Beam Width [Min]=4 5/8 in
Corner Radius [Min]=55 in
Load Cap. [Max]=5 ton
Load Cap. [Nom]=5 ton
Wt.=87 lb
