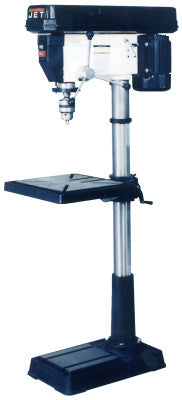

Floor Drill Presses, 1 in (steel) Cap., 3/4 in Chuck, 150 - 4,200 rpm

Cast iron head
Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings mounted in an enclosed quill for extended life
Massive T-slotted production work table

Quantity 1EA

Specifications

Bit/Blade Mounting Size Symbol=Morse #3
Center to Side Distance=10 1/4 in
Chuck Size=3/4 in
Chuck to Base Distance [Nom]=46 3/4 in
Chuck to Table Distance=29 1/8 in
Control Type=On/Off
Drilling Cap.=1 in (steel)
Includes=Hinged Metal Belt and Pulley Cover
No. of Speeds=12
Phase=Single
Power Cap. [Max]=1 1/2 hp
Speed [Max]=4,200 rpm
Speed [Min]=150 rpm
Stroke Length [Nom]=4 5/8 in
Table/Plate Length=18 5/8 in
Table/Plate Width=16 1/8 in
Tilt [Max]=45
Voltage [Nom]=115 VAC; 230 VAC
Wt.=288 lb
