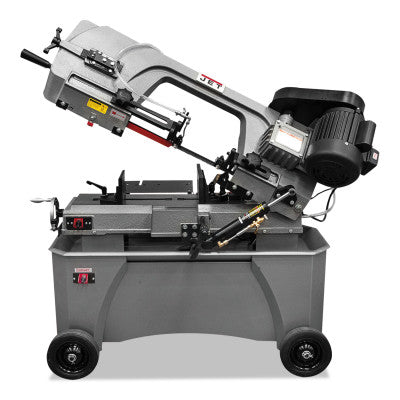

HVBS-712D Horizontal/Vertical Bandsaw, 3/4 hp, 115 VAC; 230 VAC

Improved height and width of stand with built-in storage cabinet and chip tray
Tool-less quick lock vise with preset mitering positions at 15, 30 & 45
Improved height and width of stand with built-in storage cabinet and chip tray
Micro adjustable tool-less material stop for accurate set-up and repeatability

Quantity 1EA

Specifications

Blade Length [Nom]=93 in
Blade Speed [Nom]=87 sfpm; 132 sfpm; 178 sfpm; 260 sfpm
Blade Thickness [Nom]=0.032 in
Blade Width [Nom]=3/4 in
Cutting Cap. [Max]=7 in x 12 in
Drive Gearing=Worm Gearing
Height [Nom]=40 in
Includes=(1) Band saw; (1) Pulley cover; (1) Table Plate; (1) Handle with washer and nut; (4) Wheels; (2) Axles; (2) Supports (1 long, 1 short); (1) Filter assembly; (1) Work stop assembly; (1) Hardware package that includes: (1) Lock screw; (2) Hex cap bolts 1/4 x 1/2; (2) Flat washers 1/4; (2) Wire nuts; (4) Flat head screws 1/4 x 3/8; (4) Flat washers 5/8; (4) Cotter pins
Length [Nom]=48 in
Phase=Single
Power Cap. [Max]=3/4 hp
Power Cap. [Nom]=3/4 hp
Throat Depth [Nom]=7 in
Tilt [Nom]=45 ; 30 ; 90
Type=Horizontal/Vertical Bandsaw
Voltage [Nom]=115 VAC; 230 VAC
Width [Nom]=17 in
Wt.=418 lbs
