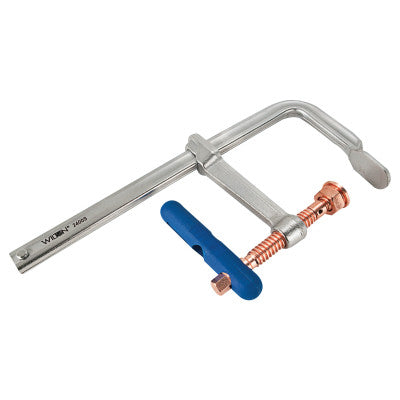

Regular Duty Copper F-Clamps, 16 in, 4 3/4 in Throat, 2,660 lb Load Cap

Spark-Duty copper-plated spindle extends the life of the clamp by protecting the spindle and pad from harmful welding spatter
Quick-Twist Pads are simple and fast to replace with a V-Groove pad included in every box, or optional serrated pad
Ergonomic Wilton-Grip has anti-fatigue properties and provides comfort during repetitive clamping
Drop forged arm provides minimal flex under heavy work loads

Quantity 1EA

Specifications

Bar Thickness=19/32 in
Bar Width=1 3/16 in
Body Finish=Spindle: Copper Plated; Clamp Surface: Zinc Plated; Body: Zinc Plated
Body Material=Extruded Steel; Zinc Plated
Depth [Nom]=18 1/2 in
Handle Finish=Powder Coat
Handle Material=Ergonomic Rubber
Handle Type=Sliding Pin; Tommy Bar
Height [Nom]=1 1/4 in
Length [Nom]=18 1/2 in
Load Cap. [Nom]=2,660 lb
Opening Size [Max]=16 in
Opening Size [Nom]=16 in

Quantity=1 per pack
Spindle Diam=3/4 in
Style=Regular Duty F-Clamp
Throat Depth [Nom]=4 3/4 in
Type=F-Clamp
Width [Nom]=5 3/4 in
Wt.=8.5 lb
