Bosch Tool Corporation

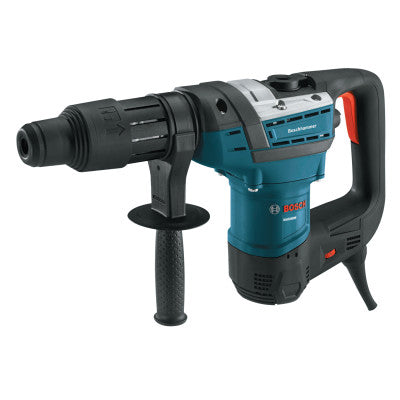

SDS-max Combination Rotary Hammers, 1 9/16 in Drive, 360 Auxiliary Handle
SDS-max Combination Rotary Hammers, 1 9/16 in Drive, 360 Auxiliary Handle
Call for availability
Couldn't load pickup availability
SKU
SKU:114-RH540M
SDS-max bit system provides tool-free bit changes with automatic bit locking, dust protection and maximum impact energy transfer rate
Combination dual mode selector knob allows the tool to be switched between rotary hammer mode or hammer only mode
Integral clutch disengages torque transmission if the bit gets into a bind situation
Vario-Lock positioning feature rotates and locks chisel into 12 different positions to optimize working angle
360 Auxiliary handle provides a wide range of movement along with operator comfort
Quantity 1EA
Specifications
Amps [Nom]=12 A
Control Type=Forward/Reverse Switch
Cord Length=8 ft
Cutting Cap. 2=1 9/16 in (concrete)
Cycle Rate [Max]=2,900 blows/min
Cycle Rate [Min]=1,500 blows/min
Drive Size [Nom]=1 9/16 in
Drive Type=SDS-Plus
Handle Type=360 Auxiliary Handle
Height [Nom]=10 1/2 in
Impact Energy=6.1
Impact [Max]=6.1 ft/lbs
Includes=Carrying Case; Auxiliary Handle
Length [Nom]=19 in
Power Source=Electric
Speed [Max]=340 rpm
Speed [Min]=170 rpm
Type=Combination Rotary Hammer
Voltage [Nom]=120 V
Wt.=15.2 lb
