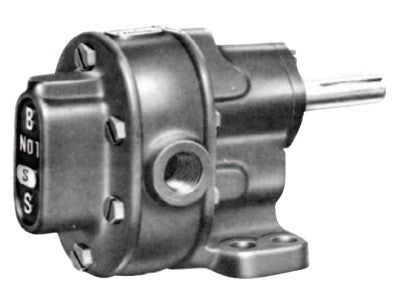

B-Series Pedestal Mount Gear Pumps, 3/4" 17.1 gpm, 200 PSI, Relief Valve, CW/CCW

BSM 'B' and 'S' series pumps are a good choice for a variety of recirculating, mixing, transfer, hydraulic, and metering applications
These pumps are available pedestal or flange mounted, with integral relief valve
Constructed of cast iron, ductile iron, or bronze
Seal options include compression packing, lip seal, and mechanical seal
Standard pumps will operate at 200 psi and 250 deg. F
Typical liquids pumped include various oils, machine tool coolant, solvents, resins, paints, varnishes, and many other liquids

Quantity 1EA

Specifications

0 PSI Flow/Power=17.1 gal/min/0.17 hp
100 PSI Flow / Power=16.8 gal/min / 1.50 hp
200 PSI Flow/Power=16.5 gal/min/3.20 hp
50 PSI Flow/Power=17.0 gal/min/0.83 hp
Displacement=0.0025 Gals/Rev
Flow [Max]=17.1 gal/min
Gear Material=Steel
Gear Type=Spur
Housing Material=Iron
Mounting=Pedestal
Port Size=3/4 in
Pressure [Max]=200 PSI
Rotation=CW or CCW
Shaft Diam=0.75 in
Shaft Height=3.88 in
Slip gpm/psi=0.0025
Speed [Max]=900 rpm
Type=With Relief Valve
Wt.=21 1/2 lb
