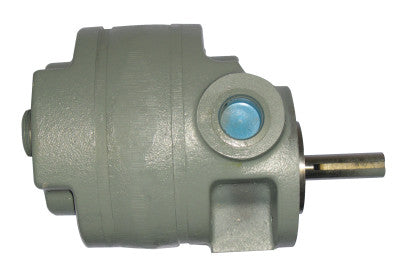

500 Series Rotary Gear Pumps, 1 1/2 in, 37.5 gpm, 500 PSI, CW

High volume pumps for operation at standard motor speeds and moderately high pressures especially suited to long-run transfer applications
Quiet operation makes these pumps desirable for machine lubrication and hydraulic service
They are also employed successfully for pumping coolant for deep hole drilling and boring

Quantity 1EA

Specifications

0 PSI Flow/Power=37.5 gal/min/0.80 hp
100 PSI Flow / Power=35.5 gal/min / 3.20 hp
200 PSI Flow/Power=33.5 gal/min/5.40 hp
50 PSI Flow/Power=36.5 gal/min/2.00 hp
Displacement=0.0330 Gal/Cycle
Flow [Max]=37.5 gal/min
Gear Material=Steel
Gear Type=Herringbone
Housing Material=Iron
Mounting=Flange
Port Size=1 1/2 in
Pressure [Max]=500 PSI
Rotation=CW
Slip gpm/psi=0.0192
Speed [Max]=1,140 rpm
Wt.=60 lb
