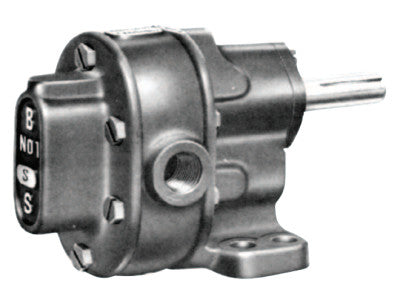

S-Series Flange Mount Gear Pumps, 3/8 in, 4.5 gpm, 200 PSI, Relief Valve, CW

Handles a wide variety of fluids in transfer work, coolant, lubrication, and hydraulic applications in the machine tool and industrial fields
Seal options include compression packing, lip seal, and mechanical seal
Standard pumps will operate at 200 psi and 250 F

Quantity 1EA

Specifications

0 PSI Flow/Power=4.5 gal/min/0.14 hp
100 PSI Flow / Power=4.3 gal/min / 0.48 hp
200 PSI Flow/Power=4.0 gal/min/0.95 hp
50 PSI Flow/Power=4.4 gal/min/0.29 hp
Displacement=0.0026 Gals/Rev
Flow [Max]=4.5 gal/min
Gear Material=Steel
Gear Type=Helical
Housing Material=Iron
Mounting=Flange
Port Size=3/8 in
Pressure [Max]=200 PSI
Rotation=CW
Shaft Diam=0.56 in
Shaft Height=2.38 in
Slip gpm/psi=0.0024
Speed [Max]=1,725 rpm
Type=With Relief Valve
Wt.=8.4 lb
