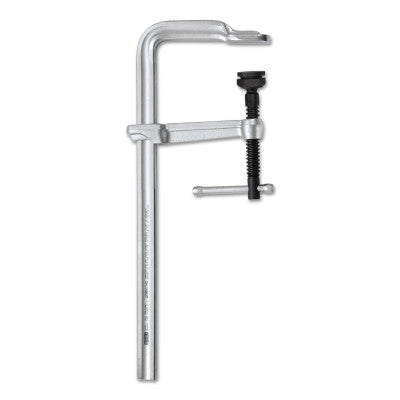

SQ Series Bar Clamps, 20 in Cap., 5 1/2 in Throat, 2,660 lb Load
SQ Series Bar Clamps, 20 in Cap., 5 1/2 in Throat, 2,660 lb Load
SKU:013-SQ-20
Regular-duty, all-steel bar clamp
Comes with standard rail profile and standard pad
Heat treated, high carbon Acme threaded screw – tempered and quenched to give greater loading capacity and longer service life
The high-strength sliding pin T-Handle is sized according to the clamp’s capability
Quantity 1EA
Specifications
Bar Thickness=1 3/16 in
Bar Width=19/32 in
Body Finish=Zinc Plated
Body Material=Steel
Capacity [Nom]=20 in
Handle Finish=Electro-Galvanized
Handle Material=Tempered Steel
Handle Type=Sliding Pin T-Handle
Height [Nom]=1.578 in
Length [Nom]=24 3/4 in
Load Cap. [Nom]=2,660 lb
Locking Type=Thread Locking
Material=Steel
Opening Size [Max]=20 in
Opening Size [Nom]=20 in
Spindle Diam=0.78 in
Spindle Material=High Carbon Steel
Style=Regular-Duty
Throat Depth [Min]=5 1/2 in
Throat Depth [Nom]=5 1/2 in
Width [Nom]=8 1/8 in
Wt.=7.3 lb
