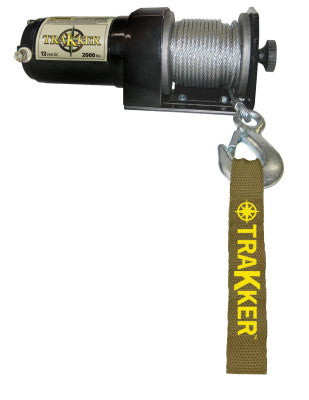

Keeper Tracker ATV/UTV Series 12 Volt DC Electric Winches, 2,400 lb Load Cap.

Cam activated clutch and automatic mechanical full load brake
3-stage full metal planetary gear train with case hardened gears
Permanent magnet motor
Integrated heavy duty ATV handle bar rocker switch
Handheld switch on 15' lead with integrated LED high density work light and handheld wireless remote control
Galvanized wire rope with looped thimble, clevis hook with latch and red, end travel warning area
Heavy duty 4-way roller fairlead
Circuit breaker protected
Hand saver strap

Quantity 1EA

Specifications

Amps [Nom]=80 - 1100 A
Cable Length [Nom]=5-50 ft
Cable/Wire Size [Nom]=5/32 in
Depth [Nom]=4 in
Drum Hub Diam=1 1/4 in
Finish=Powder Coated
Full Load Speed Empty Reel=4.5 ft/min
Full Load Speed Full Reel=4.5 ft/min
Gear Material=Metal
Gear Type=Differential Planetary
Gear:Ratio=03/03/1900
Height [Nom]=4 1/4 in
Length [Nom]=11.180 in
Load Cap. [Nom]=2,400 lb
Material=Steel; Aircraft Grade Galvanized Wire Rope
Power Cap. [Nom]=1 hp
Power Source=Battery or Rectifier
Voltage [Nom]=120 VDC
Width [Nom]=4 in
Wt.=115 lb
