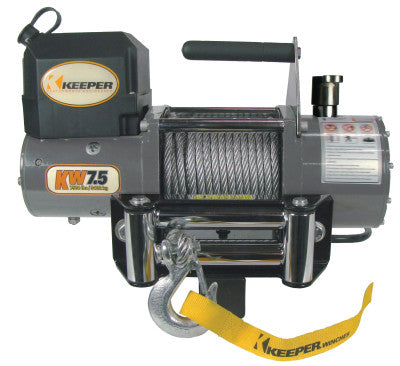

Heavy Duty Series 12 Volt DC Electric Winches, 8,500 lb Load Cap.
Heavy Duty Series 12 Volt DC Electric Winches, 8,500 lb Load Cap.
SKU:130-KW75122RM
Lift and turn free spooling clutch and automatic mechanical full load brake
3-stage full metal planetary gear train with case hardened gears
Integrated heavy duty sealed solenoid switching
Handheld switch on 15' lead with integrated LED high density work light and handheld wireless remote control
Galvanized wire rope with looped thimble, clevis hook with latch and red, end travel warning area
Heavy duty 4-way roller fairlead
Circuit breaker protected
Hand saver strap
Quantity 1EA
Specifications
Amps [Nom]=400 - 2800 A
Cable Length [Nom]=10-72 ft
Cable/Wire Size [Nom]=5/16 in
Depth [Nom]=6.3 in
Drum Hub Diam=2 1/2 in
Finish=Powder Coated
Full Load Speed Empty Reel=6 ft/min
Full Load Speed Full Reel=14 ft/min
Gear Material=Metal
Gear Type=Three Stage Planetary
Gear:Ratio=1800:4,294,967,000
Height [Nom]=8.6 in
Length [Nom]=16.9 in
Load Cap. [Nom]=8,500 lb
Material=Aircraft Grade Galvanized Wire Rope; Steel
Power Cap. [Nom]=4 1/2 hp
Voltage [Nom]=120 VDC
Width [Nom]=6.3 in
